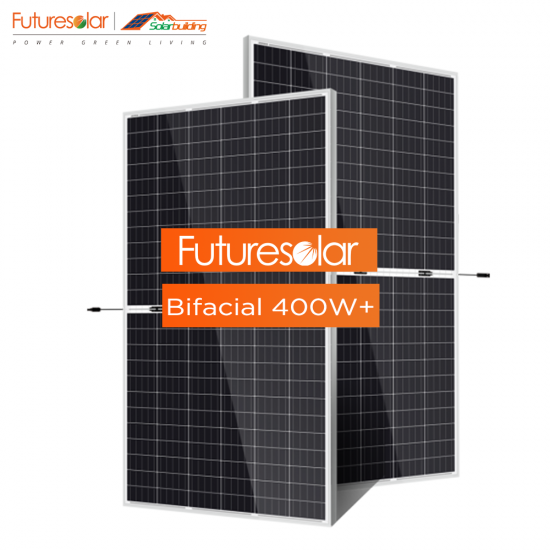

Bifacial double glass half-cell photovoltaic module 410w-450w

Bifacial double glass half-cell photovoltaic module 410w-450w

Bifacial solar panel with Tier 1 quality

Ideal photovoltaic module for pergola, green house

Get more electric than conventional pv module

Frameless and Framed both available

Aesthetic building's choice

  • Brand:

    Futuresolar
Product Details

Futuresolar Bifacial Double Sided Glass Half-cell 410w 420w 430w 440w 450w 455w Solar Module


Bifacial
Futuresolar PERC mono bifacial





High power
Low LID
Bifacial PERC
Half-cut cell


1. Half-cut cell and bifacial technology enables higher power

2. Using M6 standard wafer Part of assembly line upgraded to 9BB, further improve power

3. Unique parallel connection design, more energy output under shading or non-uniform radiation

4. Front/back side maximum static loading 5400/2400Pa, suitable for tracker

5. Split junction box

6. Perfect PV Module for architectural, flat roof and tracker solar power systems.



Bifacial Power Generation

The energy yield of bifacial module can be influenced by albedo, height of module, GCR and DHI etc. Installation height of bifacial module is recommended to be higher than 1m. Shading from bracket and junction box should be avoided. At present, the power generation of bifacial module on fixed brackets and single axis tracker can be simulated with PVsyst. Investors can determine the DC/AC ratio of bifacial module system to minimize the LCOE.

Futuresolar bifacial double glass solar panels technology



Electrical Characteristics
Model Number
FSM440M-72HBD
FSM445M-72HBD
FSM450M-72HBD
FSM455M-72HBD
Testing Condition
STC
NOMT
STC
NOMT
STC
NOMT
STC
NOMT
Maximum Power (Pmax/W)
440
327.2
445
330.9
450
334.6
455
338.3
Open Circuit Voltage (Voc/V)
49.2
45.8
49.4
46.0
49.6
46.2
49.8
46.4
Short Circuit Current (Isc/A)
11.45
9.27
11.52
9.32
11.58
9.38
11.65
9.43
Voltage at Maximum Power (Vmp/V)
41.0
38.1
41.2
38.3
41.4
38.4
41.6
38.6
Current at Maximum Power (Imp/A)
10.73
8.60
10.8
8.65
10.87
8.70
10.93
8.76
Module Efficiency(%)
20.2
20.5
20.7
20.9
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25℃, Spectra at AM1.5
Test uncertainty for Pmax: ±3%

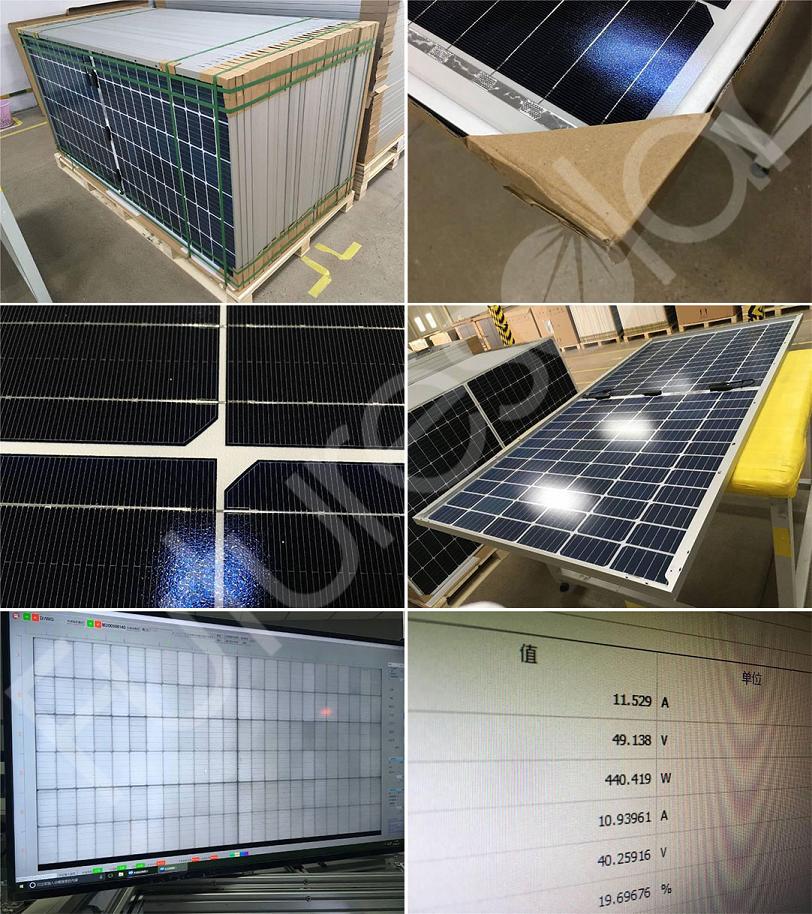

Packing & Quality Test



Free anti-dumping tariffs for North America. Find we Futuresolar as your best double-side Bi-facial solar modules manufacturer

Any questions about lead time and ship terms, we would be glad to hear from you.

A free consultation

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
