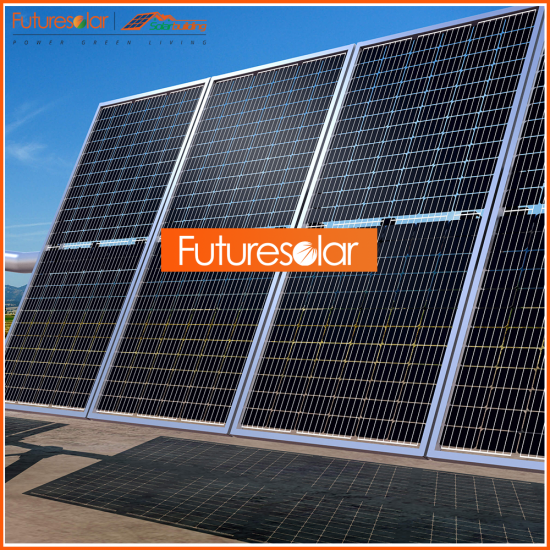

Futuresolar 500w Plus Big Panel double sided bifacial solar panels 525W-550W

Performance at STC

Maximum Power (Pmax/W)

525

530

535

540

545

550

Operating Voltage (Vmpp/V)

40.6

40.8

41.0

41.2

41.4

41.6

Operating Current (Impp/A)

12.94

13.00

13.05

13.11

13.17

13.23

Open-Circuit Voltage (Voc/V)

48.8

49.0

49.2

49.4

49.6

49.8

Short-Circuit Current (Isc/A)

13.71

13.76

13.81

13.87

13.93

13.99

Module Efficiency r|m(%)

20.1

20.3

20.5

20.7

20.9

21.1

Performance at NMOT

Maximum Power (Pmax/W)

391.6

395.4

398.9

402.8

406.6

410.5

Operating Voltage (Vmpp/V)

37.8

38.0

38.2

38.4

38.6

38.8

Operating Current (Impp/A)

10.35

10.40

10.44

10.49

10.54

10.59

Open-Circuit Voltage (Voc/V)

45.7

45.9

46.1

46.3

46.4

46.6

Short-Circuit Current (Isc/A)

11.05

11.09

11.13

11.18

11.23

11.28

STC: Irradiance 1000W/m², Cell Temperature 25C, Air Mass AM 1.5

NMOT: Irradiance at 800W/m², Ambient Temperatue 20 C, Air Mass AM1.5, Wind Speed 1m/s

Electrical characteristics with different rear side power gain (refer to 540W front)

Pmax gain

Pmax/W

Vmpp/V

Impp/A

Voc/V

Isc/A

5%

567

41.2

13.77

49.4

14.56

10%

594

41.2

14.42

49.4

15.26

15%

621

41.2

15.08

49.4

15.95

20%

648

41.2

15.73

49.4

16.64

25%

675

41.2

16.39

49.4

17.34
