Futuresolar 280W-300W solar panel for home

Futuresolar 280W-300W solar panel for home

Free solar panel tariff for North America market

Black Frame panel available

  • Brand:

    Futuresolar
  • Payment:

    T/T, L/C
  • Min order:

    27 pcs
  • Shipping Port:

    Shanghai
  • Lead Time:

    7 days
  • Number of Cells:

    120Cells
Product Details

Futuresolar grade a 5bb 9bb 12bb poly 270w 275w 280w 285w 290w 295w 300w 305w solar panel for home

300w poly-crystalline solar panel factory, a good choice of solar panels for schools, houses and commercial buildings, solar water pumps, solar air conditioners. This Futuresolar Polycrystalline solar panel made by super high efficiency poly solar cells with half-cut cell technology, your best solar panel options.


ELECTRICAL DATA(STC).

Module
FSMxxxP-60H xxx = Peak Power Watts
Peak Power Watts(Pmax/W)
285
290
295
300
305
Power Output Tolerance(W)
0~+5
Maximum Power Voltage(Vmp/V)
32.1
32.3
32.5
32.7
32.9
Maximum Power Current(Imp/A)
8.88
8.98
9.08
9.18
9.28
Open Circuit Voltage(Voc/V)
38.7
38.9
39.1
39.3
39.5
Short Circuit Current(Isc/A)
9.42
9.49
9.57
9.65
9.73
Module Efficiency(%)
17.1
17.4
17.7
18.0
18.3


STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.

*Measuring Tolerance: ±3%.



Detail

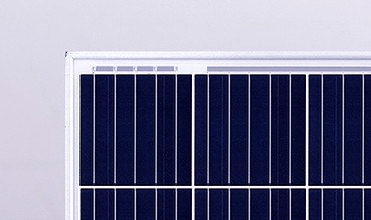

solar glass


Glass


> Antireflective glass
> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

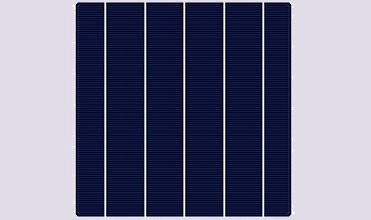

Solar Cell


> High Efficiency PV Cells

> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID


solar cell poly

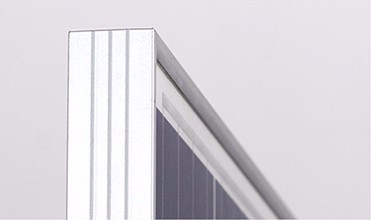

aluminum alloy frame

Frame


> Conventional frame

> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

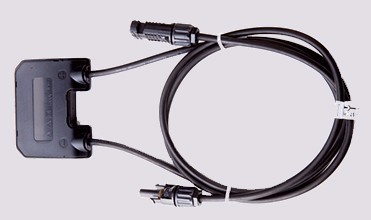

Junction box


> Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life


IP67 junction box

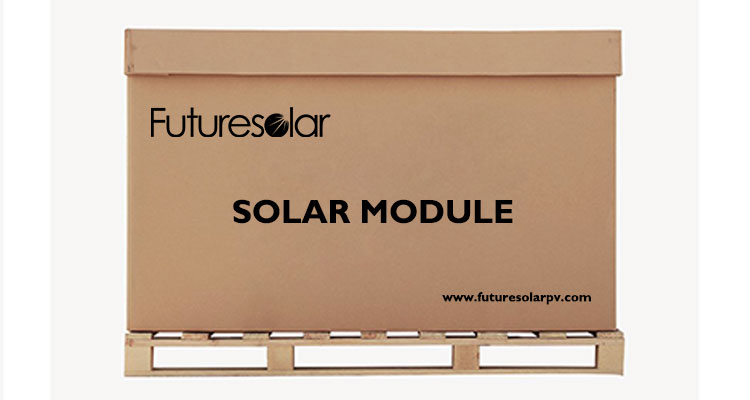

Professional Packing
Futuresolar proressional solar modules packing
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
